Liitokala Lii-M4 încărcător pentru baterii cu funcție de testare

Main Features:

• A charger suitable for parallel charging of 4 batteries


• Equipped with a fast charging function, up to 2A charging current


• LCD display shows the battery's charge status and voltage


• Equipped with all kinds of protections from overcharging to short-circuiting


• Can charge 1.2V and 3.6V batteries


• Supports all sizes: 10440-16340-14500-18650-26650-21700 Li-ion battery sizes and AAA-SC Ni-Mh sizes (max 71 mm, protected 21700 batteries do not fit)


• Capacity test function

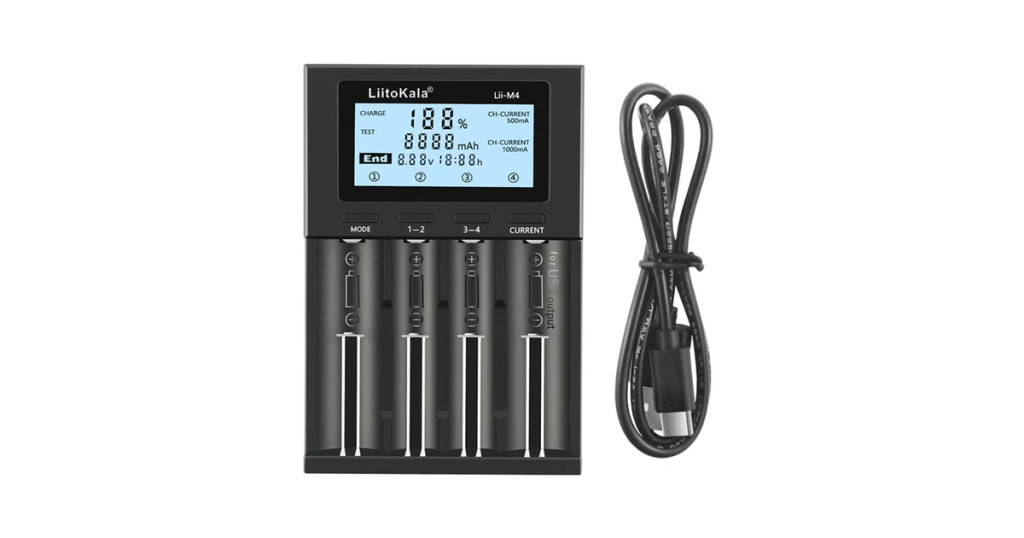

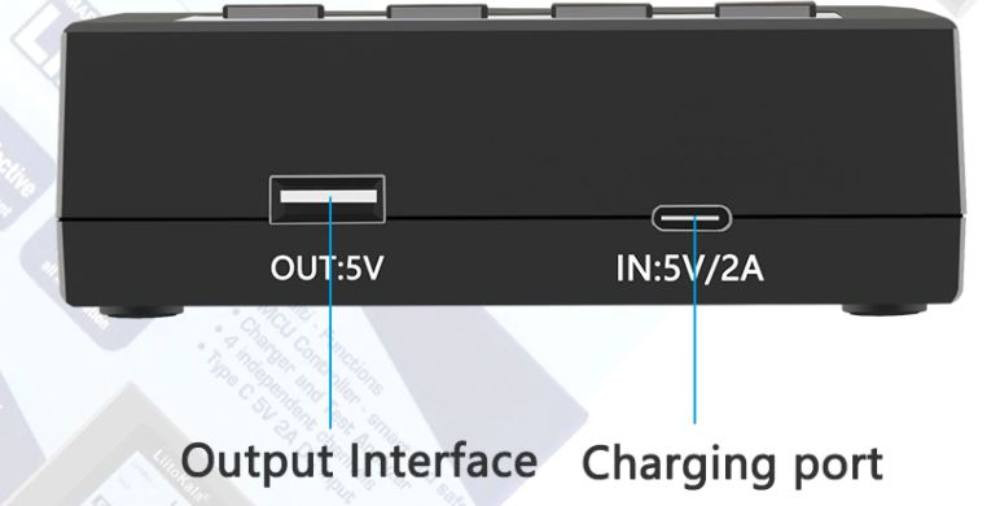

• C-type port (comes with a charging cable)


• Powerbank function


• 255g


• 100*146*33 mm

Usage:

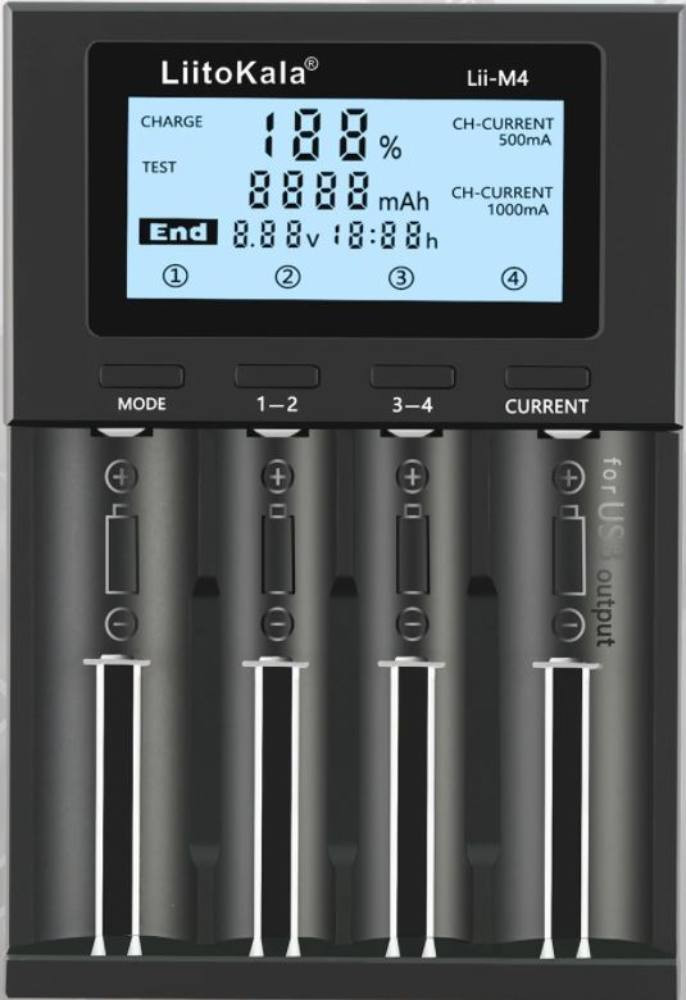

• The charger has 4 buttons: mode selection (MODE), channel 1-2 query, channel 3-4 query, and current selection (CURRENT). These 4 buttons activate the LCD backlight function simultaneously.


• 1. MODE button: Mode selection; including CHARGE charging mode and TEST capacity sensing mode; press and hold the MODE button to switch between CHARGE charging mode and TEST capacity sensing mode: first touch 1-2, 3-4 for channel selection, then press and hold the MODE button to change the mode, press the CURRENT button to change the current size, after selection, it enters the operational state after 8 seconds of inactivity;


• 2. Channel 1-2 buttons: correspond to channels 1 and 2; by continuously pressing the button, you can alternatively select and view the data for channels 1 and 2;


• 3. Channel 3-4 buttons: correspond to channels 3 and 4; by continuously pressing the button, you can alternatively select and view the data for channels 3 and 4;


• 4. CURRENT button: current selection; Li-ion: Ni-MH/Ni-cd: 500mA/1000mA Ni-MH/Ni-cd: 500mA; press and hold this button to control the constant display of the LCD screen;


• The charger allows you to press the appropriate function button to independently charge or change current selection, as well as charge various batteries in mixed configurations, making it easy to operate; during work mode, you can touch (1-2, 3-4) button points to view the relevant channel current (mA) / data reference values, such as capacity (mAh) / voltage (V) / time (h).
