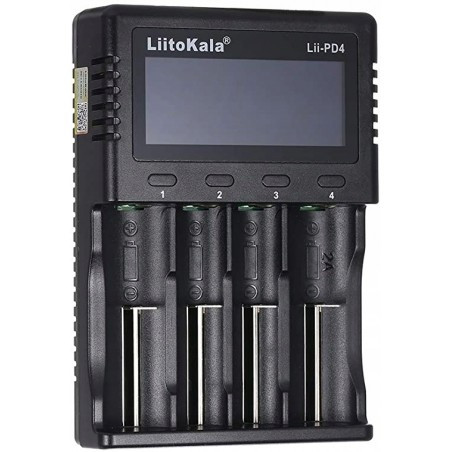

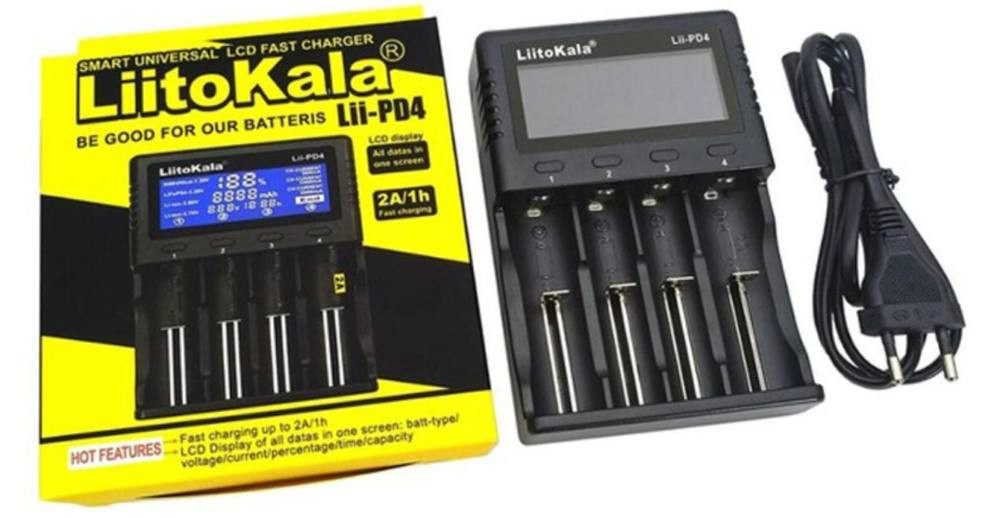

Liitokala Lii-PD4 LCD încărcător pentru baterii

Main Features:

• Charger suitable for parallel charging of 4 batteries


• Equipped with fast-charging function, with up to 2A charging current


• The LCD display shows the battery’s charge level and voltage status


• Equipped with various protections from overcharging to short-circuit protection


• Compatible with all sizes of 10440-26650-21700 Li-ion batteries and AAA-SC Ni-Mh batteries


• Revival function for over-discharged batteries

Usage:
To select the battery type, press the button within 8 seconds (it automatically detects if it's a 3.7V Li-ion or 1.2V Ni-Mh battery. Charging will start after 8 seconds).

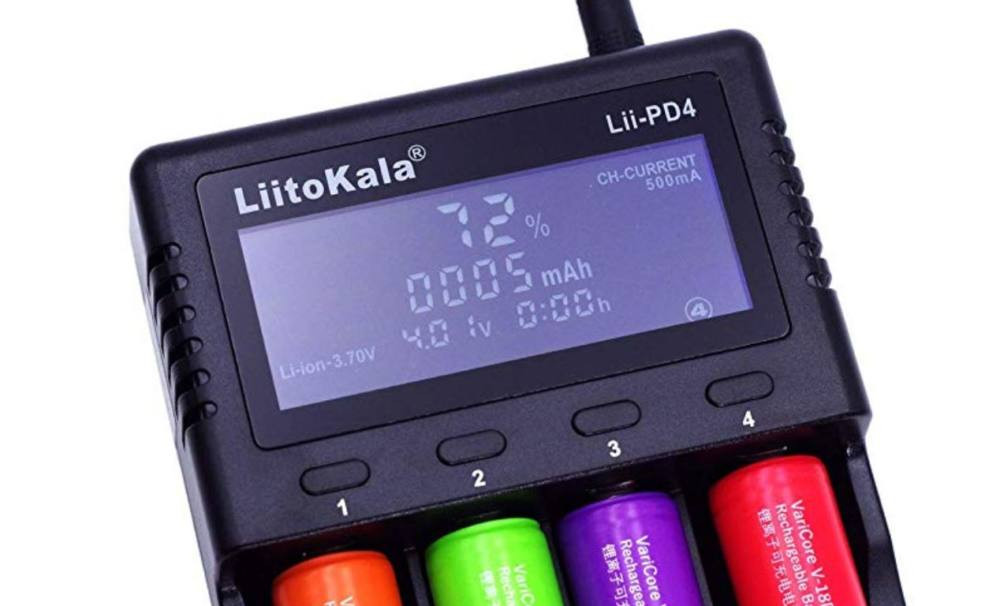

LCD Display:
1. If no battery is inserted, the LCD displays zero and then enters sleep mode.
2. If the battery is detected, the LCD lights up, and 3.7V LCD flashes to indicate the battery type setting. If no action is taken, charging will automatically begin after 5 seconds. The LCD will show the charging status, including BATTERY TYPE, TIME, VOLUME, VOLTAGE, CURRENT, and ACHIEVED VOLUME.
3. The charger screen will automatically enter sleep mode. By touching the button for 5 seconds, the battery type can be displayed.
4. The LCD screen lights up when charging is complete, and you can unplug the batteries.
5. No need to set the charging current; the charger automatically controls it. Li-ion max. 2A, Ni-Mh/Ni-Cd max. 1A support.

Warnings:
1. This charger can only charge cylindrical lithium-ion batteries and nickel-metal hydride batteries, not rechargeable lithium iron phosphate batteries.
2. Before use, please read the instructions carefully, pay attention to the recommended charging current for rechargeable batteries, and do not exceed the recommended charging current.
3. Do not use other power adapters.
4. The charger may get hot during discharge; be careful not to burn yourself.
5. Stop using it, unplug the power supply, and remove the battery.
6. Only for use in a normal room environment.
7. The product’s test data is for reference only; please refer to professional equipment for accurate results.
